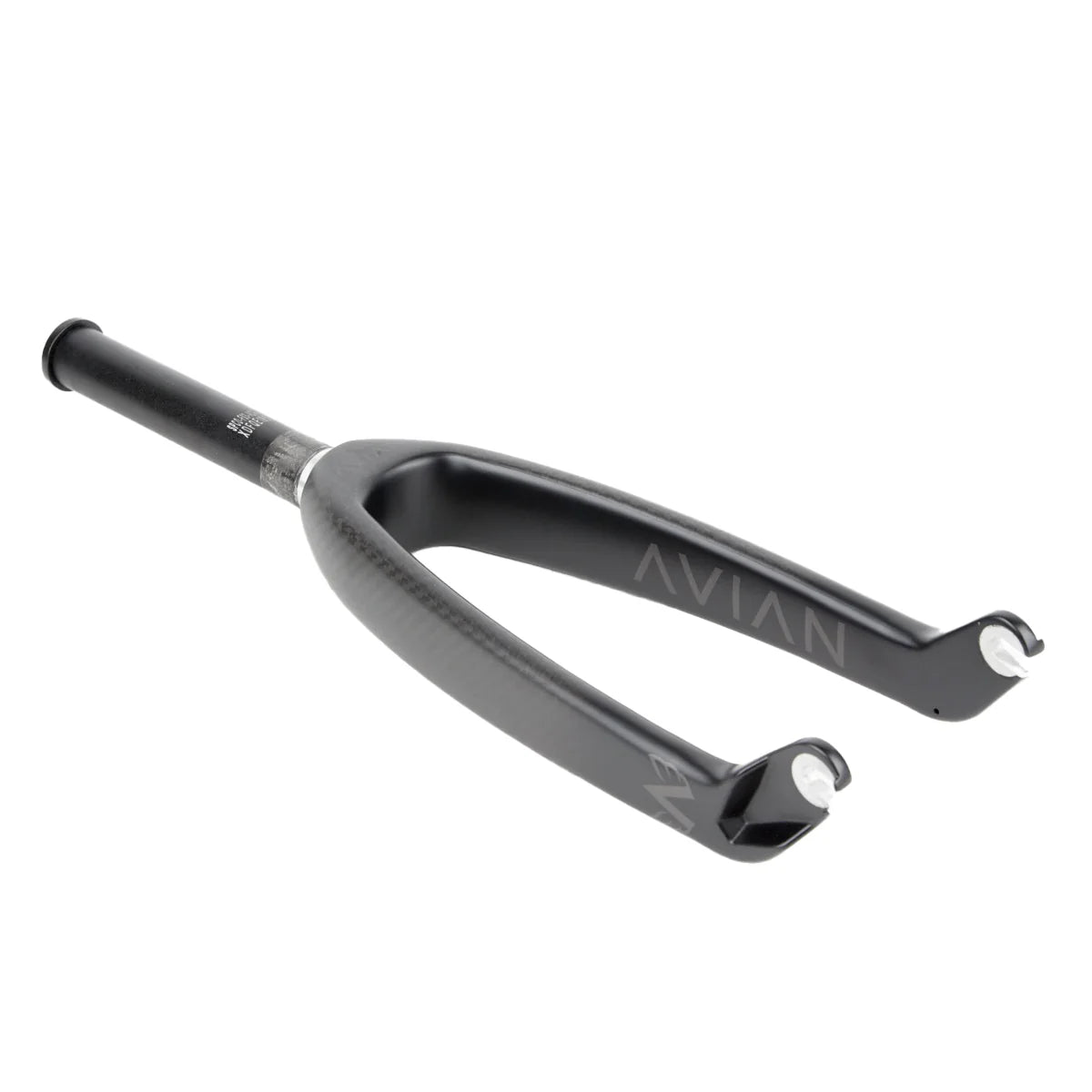

The Versus steerer tube is made of 4mm thick 7005 aluminum and features an M10 thread internal locking system to eliminate expander plugs & star nuts that often compromise fork strength. The aero carbon fiber legs are made of highly durable Toray fiber, and the alloy drop-outs are available in your choice of 10mm or 20mm.
SPEC
- 4mm thick 7005 steerer tube
- Toray carbon fiber legs
- Internal locking system
- 170mm steerer tube length
- 303mm axle-to-crown (20")
- 32mm drop-out offset
- 18.45oz (with stem-lock & top cap)
The Versus Pro Carbon Fork is compatible with BMX racing frames that do not have a tapered head-tube. Although with the right bearing race, this fork is compatible with a tapered head tube, it is highly suggested that you would use our Versus Tapered fork model.
Important Torque Spec Info:
Please use a torque wrench when installing this fork onto the bike. The fork’s integrated locking system has an alloy bolt/head, so if it’s over-tightened then you will strip it. Tighten between 4-5Nm is fine, but do not exceed 5.5Nm.
