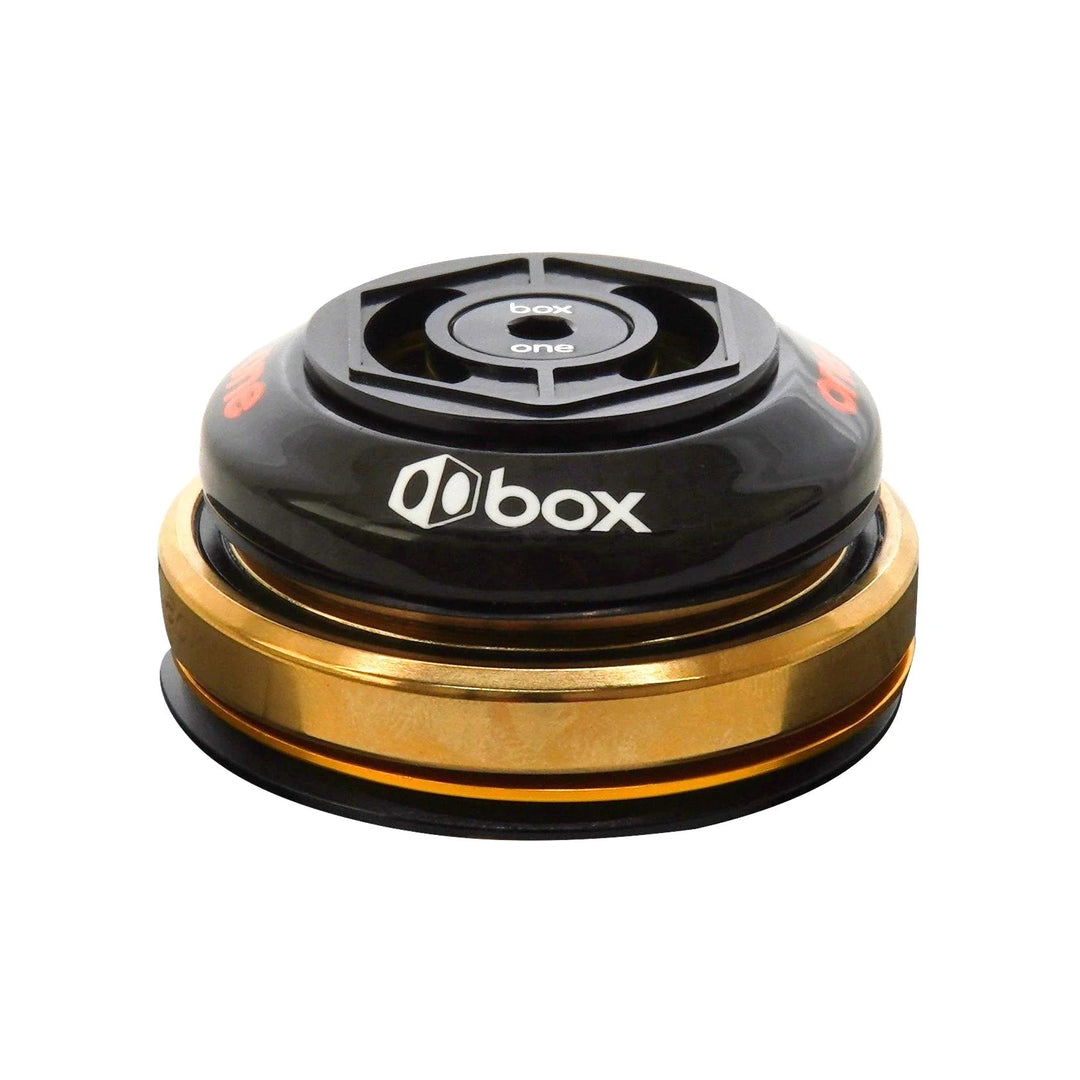

Box One Carbon Tapered BMX Headset
The Box One™ Carbon Tapered Headset combines premium materials, ultra-smooth bearings, and lightweight engineering to deliver precise, reliable steering for high-performance BMX race builds.
From the CNC-machined compression cap to the titanium-nitride coated bearings, every component has been designed with performance, durability, and weight reduction in mind.
At the top, a custom CNC-machined aluminium compression cap features Box’s distinctive logo shape with precision cut-outs to remove unnecessary weight. An anodised aluminium bolt threads directly into a gold anodised aluminium expander plug, eliminating the need for a traditional star nut.
The expander system is compatible with all 1-1/8" steerer tubes, including carbon fibre steerers, making it an ideal choice for premium carbon BMX fork setups.
A lightweight carbon fibre upper bearing cover further reduces weight while delivering the unmistakable premium appearance of Box One components.
At the heart of the headset are two super-smooth 45° × 45° sealed bearings with a titanium-nitride coating. This specialised coating reduces friction, increases corrosion resistance, and promotes smooth, consistent steering performance.
For easier installation and maintenance, the Box One headset uses a split crown race, allowing it to be fitted or removed without the struggle associated with traditional press-fit crown races.
Designed for 1.5" tapered frames and forks, the headset also includes an adapter crown race, allowing riders to use a standard straight 1-1/8" steerer fork in a compatible tapered frame.
Why Riders Choose the Box One Carbon Headset
✔ Titanium-Nitride Bearings – Low-friction coating provides smooth steering and increased corrosion resistance.
✔ Carbon Fibre Bearing Cover – Premium construction reduces weight and delivers a clean race finish.
✔ Carbon Steerer Compatible – Expander plug eliminates the need for a traditional star nut.
✔ Tapered or Straight Fork Compatibility – Includes an adapter crown race for 1-1/8" straight steerer forks.
✔ Easy Installation – Split crown race makes fork installation and removal considerably easier.
Key Features
Titanium-Nitride Coated Sealed Bearings
Two sealed 45° × 45° bearings feature a titanium-nitride coating designed to reduce friction, improve corrosion resistance, and provide smooth steering performance.
Carbon Fibre Bearing Cover
Lightweight carbon construction reduces unnecessary weight while providing a premium finish.
CNC-Machined Compression Cap
Custom aluminium top cap features Box logo-inspired machining with strategic cut-outs for additional weight savings.
Aluminium Expander Plug
The gold anodised expander replaces the need for a star nut and works with 1-1/8" aluminium and carbon fibre steerer tubes.
Split Crown Race
Allows easier installation and removal when servicing or changing forks.
Straight-Steerer Adapter Included
An included adapter crown race allows a straight 1-1/8" fork to be used with the compatible tapered headset and frame setup.
